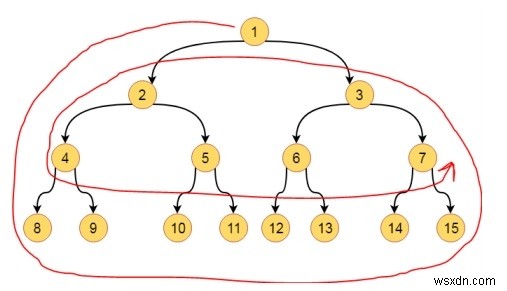

Ở đây chúng ta sẽ thấy một vấn đề thú vị. Chúng tôi có một cây nhị phân. Chúng ta phải đi ngang cây theo hướng ngược chiều kim đồng hồ. Đường truyền sẽ giống như bên dưới -
Trình tự duyệt là 1, 8, 9, 10, 11, 12, 13, 14, 15, 3, 2, 4, 5, 6, 7
Thuật toán
antiClockTraverse (gốc)
Begin i := 1, j := height of the tree flag := false while i <= j, do if flag is false, then print tree elements from right to left for level i flag := true i := i + 1 else print tree elements from left to right for level j flag := false j := j - 1 end if done End
Ví dụ
#include<iostream> using namespace std; class Node { public: Node* left; Node* right; int data; Node(int data) { //constructor to create node this->data = data; this->left = NULL; this->right = NULL; } }; int getHeight(Node* root) { if (root == NULL) return 0; //get height of left and right subtree int hl = getHeight(root->left); int hr = getHeight(root->right); return 1 + max(hl, hr); //add 1 for root } void printLeftToRight(class Node* root, int level) { if (root == NULL) return; if (level == 1) cout << root->data << " "; else if (level > 1) { printLeftToRight(root->left, level - 1); printLeftToRight(root->right, level - 1); } } void printRightToLeft(struct Node* root, int level) { if (root == NULL) return; if (level == 1) cout << root->data << " "; else if (level > 1) { printRightToLeft(root->right, level - 1); printRightToLeft(root->left, level - 1); } } void antiClockTraverse(class Node* root) { int i = 1; int j = getHeight(root); int flag = 0; //flag is used to change direction while (i <= j) { if (flag == 0) { printRightToLeft(root, i); flag = 1; //set flag to print from left to right i++; }else { printLeftToRight(root, j); flag = 0; //set flag to print from right to left j--; } } } int main() { struct Node* root; root = new Node(1); root->left = new Node(2); root->right = new Node(3); root->left->left = new Node(4); root->left->right = new Node(5); root->right->left = new Node(6); root->right->right = new Node(7); root->left->left->left = new Node(8); root->left->left->right = new Node(9); root->left->right->left = new Node(10); root->left->right->right = new Node(11); root->right->left->left = new Node(12); root->right->left->right = new Node(13); root->right->right->left = new Node(14); root->right->right->right = new Node(15); antiClockTraverse(root); }
Đầu ra
1 8 9 10 11 12 13 14 15 3 2 4 5 6 7
