Cách sử dụng NavigationView (Navigation Drawer) trong Android

Giới thiệu

NavigationView (thường gọi là Navigation Drawer / Side Menu) là thành phần UI Material Design chuẩn cho điều hướng chính của ứng dụng. Bài viết hướng dẫn triển khai Navigation Drawer với DrawerLayout, NavigationView, Toolbar, Fragment và Navigation Component (Jetpack).

Các bước thực hiện

Bước 1: Tạo dự án mới

Android Studio → File → New Project → Chọn **Navigation Drawer Activity** (template có sẵn toàn bộ code).

Hoặc Empty Activity + thêm dependency:

dependencies {
    implementation 'androidx.navigation:navigation-fragment:2.7.6'
    implementation 'androidx.navigation:navigation-ui:2.7.6'
    implementation 'com.google.android.material:material:1.11.0'
}

Bước 2: Layout chính (res/layout/activity_main.xml)

<?xml version="1.0" encoding="utf-8"?>
<androidx.drawerlayout.widget.DrawerLayout
    xmlns:android="https://schemas.android.com/apk/res/android"
    xmlns:app="https://schemas.android.com/apk/res-auto"
    xmlns:tools="https://schemas.android.com/tools"
    android:id="@+id/drawer_layout"
    android:layout_width="match_parent"
    android:layout_height="match_parent"
    android:fitsSystemWindows="true"
    tools:openDrawer="start">

    <!-- Navigation Drawer (Menu bên cạnh) -->
    <com.google.android.material.navigation.NavigationView
        android:id="@+id/nav_view"
        android:layout_width="wrap_content"
        android:layout_height="match_parent"
        android:layout_gravity="start"
        android:fitsSystemWindows="true"
        app:headerLayout="@layout/nav_header_main"
        app:menu="@menu/activity_main_drawer" />

    <!-- Nội dung chính (toolbar + fragment container) -->
    <include
        layout="@layout/app_bar_main"
        android:layout_width="match_parent"
        android:layout_height="match_parent" />
</androidx.drawerlayout.widget.DrawerLayout>

Bước 3: App Bar Layout (res/layout/app_bar_main.xml)

<?xml version="1.0" encoding="utf-8"?>
<androidx.coordinatorlayout.widget.CoordinatorLayout
    xmlns:android="https://schemas.android.com/apk/res/android"
    xmlns:app="https://schemas.android.com/apk/res-auto"
    android:layout_width="match_parent"
    android:layout_height="match_parent">

    <com.google.android.material.appbar.AppBarLayout
        android:layout_width="match_parent"
        android:layout_height="wrap_content"
        android:theme="@style/AppTheme.AppBarOverlay">

        <androidx.appcompat.widget.Toolbar
            android:id="@+id/toolbar"
            android:layout_width="match_parent"
            android:layout_height="?attr/actionBarSize"
            android:background="?attr/colorPrimary"
            app:popupTheme="@style/AppTheme.PopupOverlay" />
    </com.google.android.material.appbar.AppBarLayout>

    <!-- Fragment container - Navigation Host -->
    <fragment
        android:id="@+id/nav_host_fragment"
        android:name="androidx.navigation.fragment.NavHostFragment"
        android:layout_width="match_parent"
        android:layout_height="match_parent"
        app:defaultNavHost="true"
        app:navGraph="@navigation/mobile_navigation"
        app:layout_behavior="@string/appbar_scrolling_view_behavior" />

    <com.google.android.material.floatingactionbutton.FloatingActionButton
        android:id="@+id/fab"
        android:layout_width="wrap_content"
        android:layout_height="wrap_content"
        android:layout_gravity="bottom|end"
        android:layout_margin="16dp"
        android:src="@android:drawable/ic_dialog_email" />
</androidx.coordinatorlayout.widget.CoordinatorLayout>

Bước 4: Header Drawer (res/layout/nav_header_main.xml)

<?xml version="1.0" encoding="utf-8"?>
<LinearLayout xmlns:android="https://schemas.android.com/apk/res/android"
    android:layout_width="match_parent"
    android:layout_height="192dp"
    android:background="@drawable/nav_header_bg"
    android:gravity="bottom"
    android:orientation="vertical"
    android:padding="16dp"
    android:theme="@style/ThemeOverlay.AppCompat.Dark">

    <ImageView
        android:layout_width="72dp"
        android:layout_height="72dp"
        android:src="@mipmap/ic_launcher_round"
        android:contentDescription="@string/app_name" />

    <TextView
        android:layout_width="wrap_content"
        android:layout_height="wrap_content"
        android:layout_marginTop="8dp"
        android:text="Nguyễn Văn A"
        android:textAppearance="@style/TextAppearance.MaterialComponents.Body1" />

    <TextView
        android:layout_width="wrap_content"
        android:layout_height="wrap_content"
        android:text="nguyenvana@example.com" />
</LinearLayout>

Bước 5: Menu Drawer (res/menu/activity_main_drawer.xml)

<?xml version="1.0" encoding="utf-8"?>
<menu xmlns:android="https://schemas.android.com/apk/res/android"
    xmlns:tools="https://schemas.android.com/tools"
    tools:showIn="navigation_view">

    <group android:checkableBehavior="single">
        <item
            android:id="@+id/nav_home"
            android:icon="@drawable/ic_home"
            android:title="Trang chủ" />
        <item
            android:id="@+id/nav_gallery"
            android:icon="@drawable/ic_gallery"
            android:title="Thư viện" />
        <item
            android:id="@+id/nav_slideshow"
            android:icon="@drawable/ic_slideshow"
            android:title="Slideshow" />
        <item
            android:id="@+id/nav_tools"
            android:icon="@drawable/ic_tools"
            android:title="Công cụ" />
        <item
            android:id="@+id/nav_share"
            android:icon="@drawable/ic_share"
            android:title="Chia sẻ" />
        <item
            android:id="@+id/nav_send"
            android:icon="@drawable/ic_send"
            android:title="Gửi" />
    </group>

    <item android:title="Cài đặt">
        <menu>
            <item
                android:id="@+id/nav_settings"
                android:icon="@drawable/ic_settings"
                android:title="Cài đặt" />
        </menu>
    </item>
</menu>

Bước 6: Navigation Graph (res/navigation/mobile_navigation.xml)

<?xml version="1.0" encoding="utf-8"?>
<navigation xmlns:android="https://schemas.android.com/apk/res/android"
    xmlns:app="https://schemas.android.com/apk/res-auto"
    xmlns:tools="https://schemas.android.com/tools"
    android:id="@+id/mobile_navigation"
    app:startDestination="@id/nav_home">

    <fragment
        android:id="@+id/nav_home"
        android:name="app.com.sample.ui.home.HomeFragment"
        android:label="@string/menu_home"
        tools:layout="@layout/fragment_home" />

    <fragment
        android:id="@+id/nav_gallery"
        android:name="app.com.sample.ui.gallery.GalleryFragment"
        android:label="@string/menu_gallery"
        tools:layout="@layout/fragment_gallery" />

    <fragment
        android:id="@+id/nav_slideshow"
        android:name="app.com.sample.ui.slideshow.SlideshowFragment"
        android:label="@string/menu_slideshow"
        tools:layout="@layout/fragment_slideshow" />

    <fragment
        android:id="@+id/nav_tools"
        android:name="app.com.sample.ui.tools.ToolsFragment"
        android:label="@string/menu_tools"
        tools:layout="@layout/fragment_tools" />

    <fragment
        android:id="@+id/nav_share"
        android:name="app.com.sample.ui.share.ShareFragment"
        android:label="@string/menu_share"
        tools:layout="@layout/fragment_share" />

    <fragment
        android:id="@+id/nav_send"
        android:name="app.com.sample.ui.send.SendFragment"
        android:label="@string/menu_send"
        tools:layout="@layout/fragment_send" />
</navigation>

Bước 7: Fragment mẫu (HomeFragment.java)

package app.com.sample.ui.home;

import android.os.Bundle;
import android.view.LayoutInflater;
import android.view.View;
import android.view.ViewGroup;
import android.widget.TextView;
import androidx.annotation.NonNull;
import androidx.annotation.Nullable;
import androidx.fragment.app.Fragment;
import androidx.lifecycle.ViewModelProvider;

public class HomeFragment extends Fragment {
    private HomeViewModel homeViewModel;

    @Nullable
    @Override
    public View onCreateView(@NonNull LayoutInflater inflater,
                             @Nullable ViewGroup container,
                             @Nullable Bundle savedInstanceState) {
        homeViewModel = new ViewModelProvider(this).get(HomeViewModel.class);
        View root = inflater.inflate(R.layout.fragment_home, container, false);
        TextView textView = root.findViewById(R.id.text_home);
        homeViewModel.getText().observe(getViewLifecycleOwner(), textView::setText);
        return root;
    }
}

// HomeViewModel.java
package app.com.sample.ui.home;

import androidx.lifecycle.LiveData;
import androidx.lifecycle.MutableLiveData;
import androidx.lifecycle.ViewModel;

public class HomeViewModel extends ViewModel {
    private final MutableLiveData<String> text = new MutableLiveData<>();

    public HomeViewModel() {
        text.setValue("Chào mừng đến với Trang chủ!");
    }

    public LiveData<String> getText() {
        return text;
    }
}

<!-- fragment_home.xml -->
<?xml version="1.0" encoding="utf-8"?>
<androidx.constraintlayout.widget.ConstraintLayout
    xmlns:android="https://schemas.android.com/apk/res/android"
    xmlns:app="https://schemas.android.com/apk/res-auto"
    android:layout_width="match_parent"
    android:layout_height="match_parent">

    <TextView
        android:id="@+id/text_home"
        android:layout_width="match_parent"
        android:layout_height="wrap_content"
        android:layout_marginStart="8dp"
        android:layout_marginTop="8dp"
        android:layout_marginEnd="8dp"
        android:textAlignment="center"
        android:textSize="20sp"
        app:layout_constraintEnd_toEndOf="parent"
        app:layout_constraintStart_toStartOf="parent"
        app:layout_constraintTop_toTopOf="parent" />
</androidx.constraintlayout.widget.ConstraintLayout>

Bước 8: MainActivity (Điều phối Navigation)

package app.com.sample;

import android.os.Bundle;
import com.google.android.material.floatingactionbutton.FloatingActionButton;
import com.google.android.material.snackbar.Snackbar;
import android.view.View;
import androidx.navigation.NavController;
import androidx.navigation.Navigation;
import androidx.navigation.ui.AppBarConfiguration;
import androidx.navigation.ui.NavigationUI;
import com.google.android.material.navigation.NavigationView;
import androidx.drawerlayout.widget.DrawerLayout;
import androidx.appcompat.app.AppCompatActivity;
import androidx.appcompat.widget.Toolbar;
import android.view.Menu;

public class MainActivity extends AppCompatActivity {
    private AppBarConfiguration mAppBarConfiguration;

    @Override
    protected void onCreate(Bundle savedInstanceState) {
        super.onCreate(savedInstanceState);
        setContentView(R.layout.activity_main);

        Toolbar toolbar = findViewById(R.id.toolbar);
        setSupportActionBar(toolbar);

        FloatingActionButton fab = findViewById(R.id.fab);
        fab.setOnClickListener(view -> Snackbar.make(view, "Thay bằng hành động của bạn", Snackbar.LENGTH_LONG)
                .setAction("Action", null).show());

        DrawerLayout drawer = findViewById(R.id.drawer_layout);
        NavigationView navigationView = findViewById(R.id.nav_view);

        // Cấu hình các destination top-level (hiện hamburger icon)
        mAppBarConfiguration = new AppBarConfiguration.Builder(
                R.id.nav_home, R.id.nav_gallery, R.id.nav_slideshow,
                R.id.nav_tools, R.id.nav_share, R.id.nav_send)
                .setOpenableLayout(drawer)
                .build();

        NavController navController = Navigation.findNavController(this, R.id.nav_host_fragment);
        NavigationUI.setupActionBarWithNavController(this, navController, mAppBarConfiguration);
        NavigationUI.setupWithNavController(navigationView, navController);
    }

    @Override
    public boolean onCreateOptionsMenu(Menu menu) {
        getMenuInflater().inflate(R.menu.main, menu);
        return true;
    }

    @Override
    public boolean onSupportNavigateUp() {
        NavController navController = Navigation.findNavController(this, R.id.nav_host_fragment);
        return NavigationUI.navigateUp(navController, mAppBarConfiguration)
                || super.onSupportNavigateUp();
    }
}

Bước 9: Manifest

<?xml version="1.0" encoding="utf-8"?>
<manifest xmlns:android="https://schemas.android.com/apk/res/android"
    package="app.com.sample">
    <application
        android:allowBackup="true"
        android:icon="@mipmap/ic_launcher"
        android:label="@string/app_name"
        android:roundIcon="@mipmap/ic_launcher_round"
        android:supportsRtl="true"
        android:theme="@style/AppTheme">
        <activity
            android:name=".MainActivity"
            android:label="@string/app_name"
            android:theme="@style/AppTheme.NoActionBar">
            <intent-filter>
                <action android:name="android.intent.action.MAIN" />
                <category android:name="android.intent.category.LAUNCHER" />
            </intent-filter>
        </activity>
    </application>
</manifest>

Chạy ứng dụng

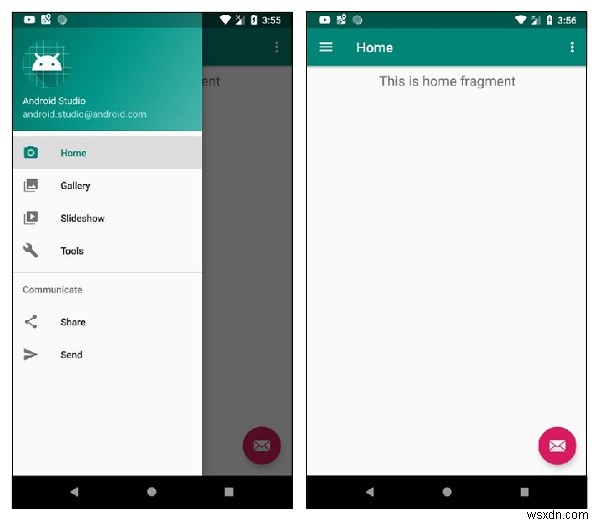

Kết nối thiết bị, nhấn Run. Vuốt từ cạnh trái hoặc nhấn icon hamburger → mở drawer → click item → chuyển Fragment.

Cách sử dụng NavigationView (Navigation Drawer) trong Android

Tóm tắt luồng hoạt động

  1. DrawerLayout chứa 2 child: Content (AppBar + NavHostFragment) + NavigationView
  2. NavigationView lấy menu từ app:menu, header từ app:headerLayout
  3. NavHostFragment nạp navGraph định nghĩa các destination (Fragment)
  4. NavigationUI.setupWithNavController() tự động đồng bộ click menu ↔ navigate
  5. AppBarConfiguration quyết định icon toolbar: hamburger (top-level) hoặc back arrow (nested)

Lưu ý

  • Template "Navigation Drawer Activity" của Android Studio tạo sẵn toàn bộ cấu trúc này
  • Mỗi item menu android:id phải khớp với android:id trong navigation graph
  • Dùng NavController để navigate programmatically: navController.navigate(R.id.nav_gallery)
  • Deep link: Thêm <deepLink app:uri="..." /> trong navigation graph
