Cách lấy màu xanh mặc định của matplotlib.pyplot.scatter

Màu mặc định của scatter là màu xanh '#1f77b4' (tab:blue). Có thể annotate để so sánh.

  • Tạo figure, axes.
  • ax.scatter(-1, 1) → màu mặc định.
  • ax.annotate("default color", xy=(-0.9, 1)).
  • ax.scatter(1, 1, c='#1f77b4') → dùng mã hex.
  • ax.annotate("using hex", xy=(1.1, 1)).
  • Đặt xlim, ylim, show().

Ví dụ

from matplotlib import pyplot as plt
plt.rcParams["figure.figsize"] = [7.00, 3.50]
plt.rcParams["figure.autolayout"] = True
fig, ax = plt.subplots()
ax.scatter(-1, 1)
ax.annotate("default color", xy=(-0.9, 1))
ax.scatter(1, 1, c='#1f77b4')
ax.annotate("using hex", xy=(1.1, 1))
ax.set_xlim(-2, 3)
ax.set_ylim(-1, 2)
plt.show()

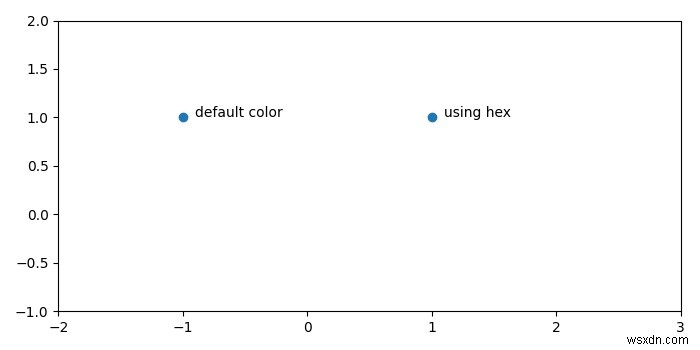

Kết quả

Hai điểm scatter cùng màu xanh, một dùng mặc định, một dùng mã hex #1f77b4.
